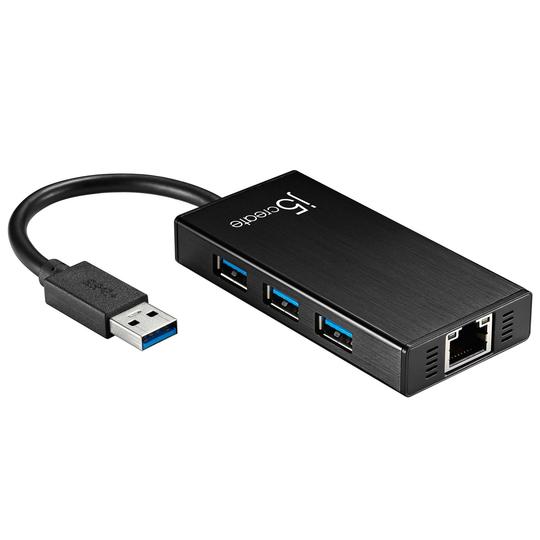

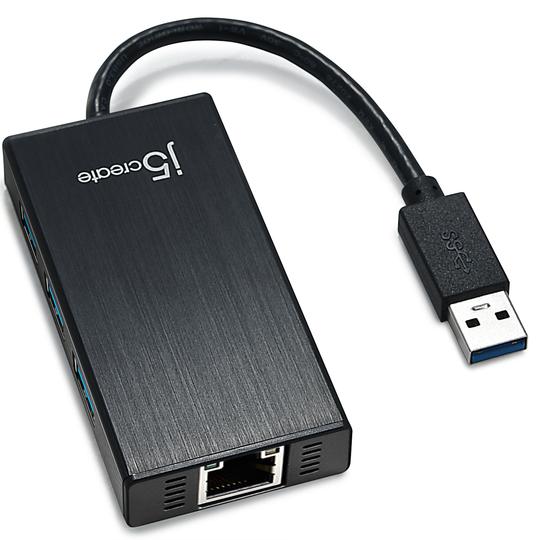

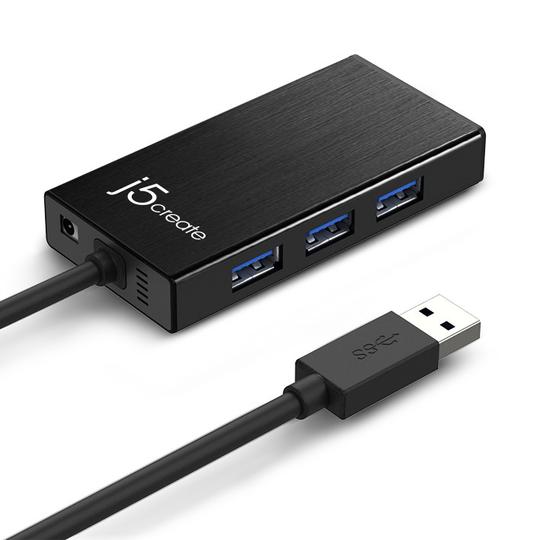

J5CREATE USB 3.0 GIGABIT ETHERNET+3-PORT USB 3.0 HUB

  • Product Description

    The JUH470 USB™ 3.0 Gigabit Ethernet & 3-Port HUB provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add additional USB™ peripherals and a Gigabit LAN through your USB™ port. With this Gigabit HUB adapter, you can add networking capabilities to a computer without them through a Wireless LAN connection. It has an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance and is perfect for your Ultrabook™ or MacBook®.

    This adapter is a simple, fast and portable alternative solution serving multiple needs at once.

    Features

    • • USB™ 3.0 Gigabit Ethernet port
    • • USB™ 3.0 plug-and-play and backwards compatible with USB™ 2.0 and 1.1
    • • Transfer all your files almost instantly over a true Gigabit network.
    • • IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
    • • USB™ bus-powered
    • • USB™ 3.0 SuperSpeed
    • • Transfer rates of up to 5 Gbps enable bulky file backup
    • • Compatible with Windows™ and macOS®

Interface

Host Interface

USB 3.0 Male Type-A Connector

Ethernet Port

RJ-45 Female Connector (Gigabit Ethernet)

USB Port

USB 3.0 Female Connector

LED

Activity And Link LED Indicators

Power Jack

DC 5V (3.5 Mm OD, 1.35 Mm ID)

Power

Power Mode

Bus-Powered Or Self-Powered

Functions

Ethernet

Transfer Rate:
1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, And 802.3ab, IEEE 802.3x
Modes:

  • Supports Wake On LAN function, suspend mode and remote wake-up via link-change,
    Magic Packet, or Microsoft® wake-up frame
  • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • Supports Jumbo Frame
  • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload



Physical Specifications

Dimensions

Main Body: 43.75(W) X 90.6(H) X 18.6(D) Mm
Cable Length: 14.5 Cm

Weight

Approximately 58.5g (Including Cable)



System Requirements

  • Microsoft® Windows® 8.1/ 8/ 7/ XP (32-bit or 63-bit)
  • macOS® X 10.10 / 10.9 / 10.8 / 10.7 / 10.6
  • Windows® Server 2012, 2008 R2, 2003(32-bit or 64-bit)
  • Linux® Kernel 2.6.14-3.5.0
  • Available USB port (USB 3.0 is recommended)



Package Contents

  • JUH470 USB 3.0 Gigabit Ethernet & 3-Port HUB
  • Quick Installation Guide
  • Driver CD
