J5CREATE USB TYPE-C GIGABIT ETHERNET & HUB MULTI ADAPTER

  • Product Descript

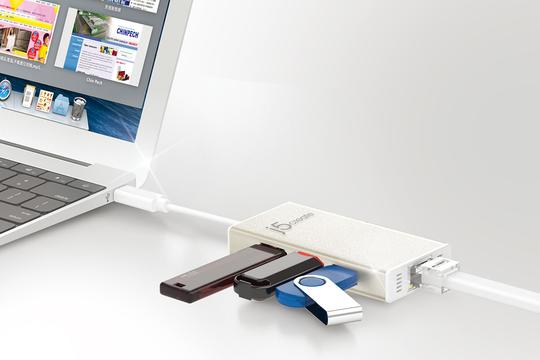

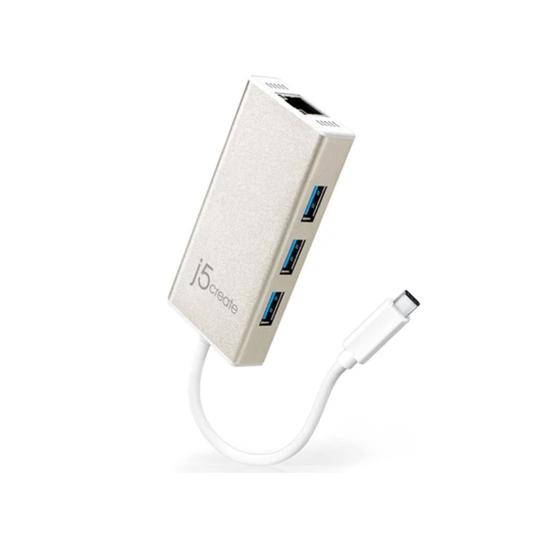

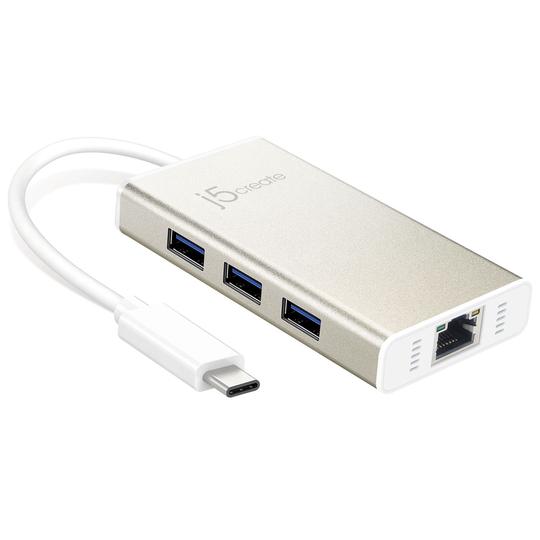

    The JCH471 USB-C® Gigabit Ethernet & HUB Multi Adapter provides extra connectivity for your computer with 5 Gbps transfer speed. Our pocket-sized multi-adapters allow you to add additional USB™ computer accessories and Gigabit LAN through your USB-C® port.

    This Gigabit Ethernet adapter allows you to add networking capabilities to a computer that does not have a Wireless LAN connection. It has an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance, and it is perfect for MacBook Air®, Chromebook™, and other laptop and desktop computers with a USB-C® port.

    Fast and portable, this unique adapter gives you Ethernet and USB™ connections all-in-one.

    Features

    • • Gigabit Ethernet and 3-Port HUB over a USB-C® connection
    • • 5 Gbps transfer rate
    • • Aluminum housing
    • • Compatible with Windows®/Mac®/Linux®/Chrome OS™

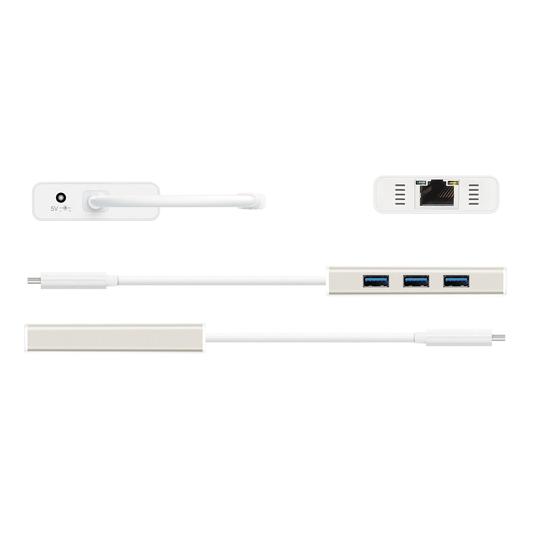

Interface

Host Interface

USB-C™ Male Connector

Ethernet Port

RJ-45 Female Connector (Gigabit Ethernet)

USB™ Port

USB™ 3.0 Female Connector X 3 Ports

LED

Activity And Link LED Indicators

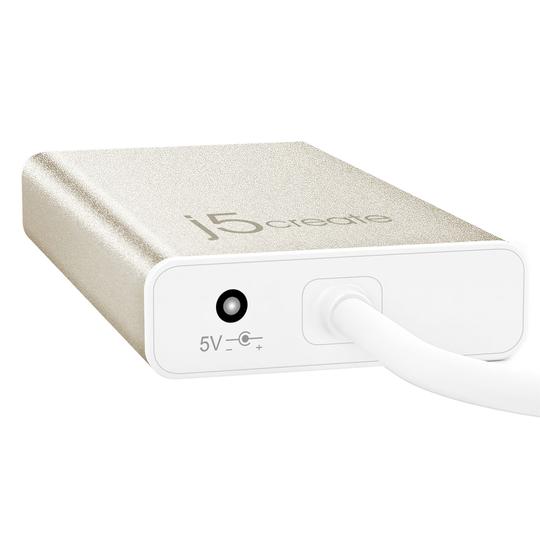

Power Jack

DC 5V (3.5 Mm OD, 1.35 Mm ID)

Power

Power Mode

Bus-Powered Or Self-Powered

  • If you are using a high-powered USB™ device, please connect your multi adapter to an AC/DC power adapter to ensure maximum performance.



Functions

Ethernet

Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

  • • Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wake-up frame
  • • Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
  • • Supports Jumbo Frame
  • • Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload



Physical Specifications

Dimensions

Main Body:
43.75 (W) X 90.6 (H) X 18.6 (D) Mm
Cable Length: 14.5 Cm

Weight

Approximately 58.5 G (Including Cable)



System Requirements

  • Windows® 10
  • macOS® X v10.8 or later
  • Linux® Kernel 3.x / 2.6.x
  • Available USB-C™ port
  • Driver not required for Chrome OS 3.8 and Linux 3.1x and up
  • Note: Driver is required for Windows 10



Package Contents

  • JCH471 USB-C™ Gigabit Ethernet & HUB Multi Adapter
  • Quick Installation Guide
  • Driver CD
